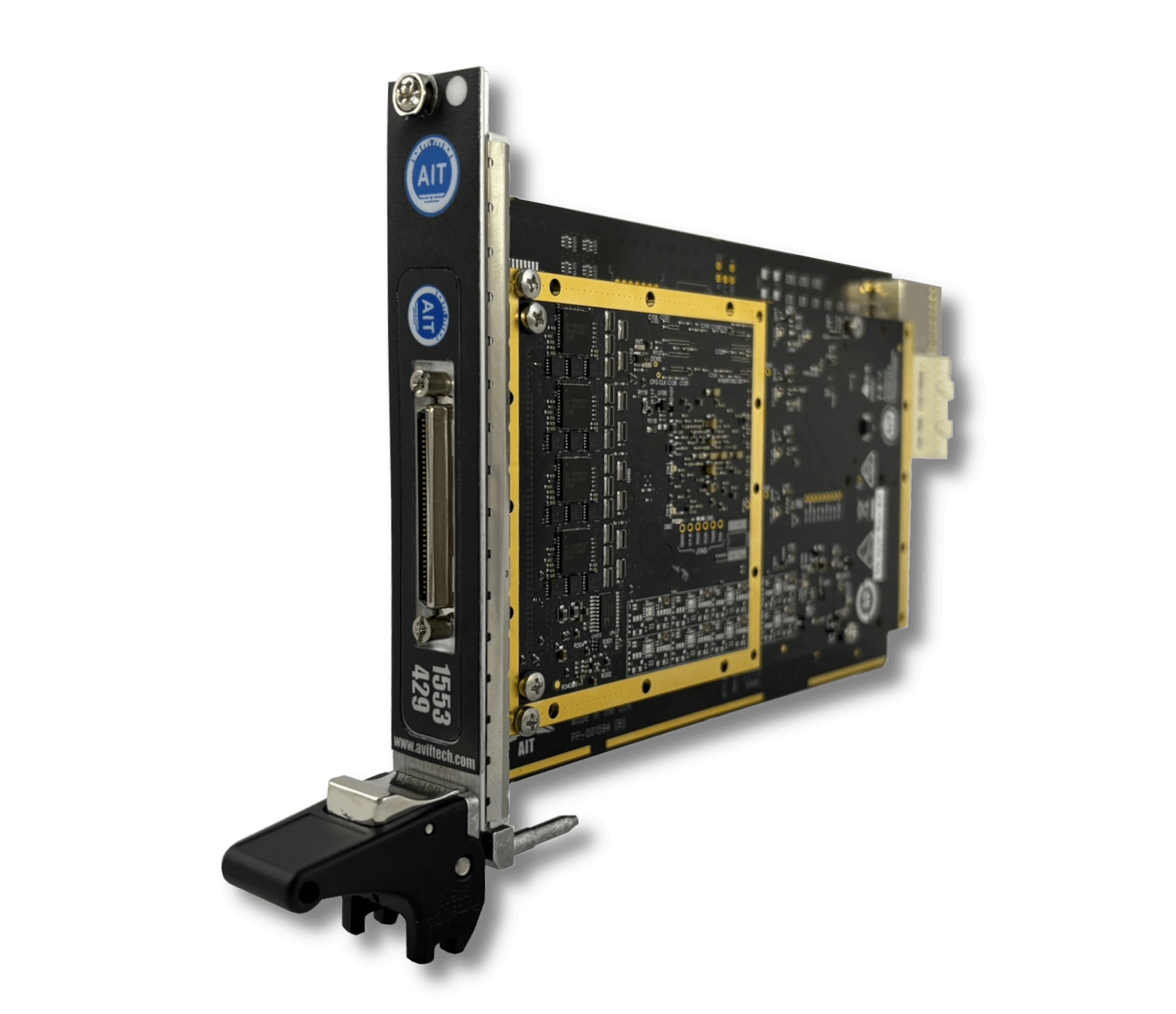

PXIe-C1553XC-EF-A429
Combination MIL-STD-1553 & ARINC 429 PXI Express Test Instrument
KEY FEATURES
- MIL-STD-1553 Features
- Dual redundant, single, dual, or quad stream configurations
- Concurrent BC, 31 RTs, and BM operations (some functions limited for quad stream)
- Physical Bus Replay
- Full error injection/detection capabilities
- Programmable trigger and capture
- Programmable Bus Coupling and Output Voltage Levels
- Supports SAE AS4112/4114 protocol testing requirements
- ARINC 429 Features
- 8 Channel (4Tx/4Rx) & 16 Channel (8 Tx/8 Rx) models available
- Programmable Tx channel output amplitude
- Programmable high/low speed operation
- Concurrent operation of all Tx/Rx channels at high speed rates
- Full error injection & detection
- Rate-oriented label transmission
- Label selective trigger for capture/filtering
- Real-time recording & post analysis of multiple channels
- Physical Bus Replay
- x1 PCI Express Host Interface
- PXI Hybrid slot capable
- Flight Simulyzer™ GUI Analyzer software
- Onboard IRIG-B time code encoder/decoder for Synchronization
- 10 Discrete I/O Interfaces (5 Outputs / 5 Inputs)
