Combo MIL-STD-1553/ARINC 429 Instruments

Full Featured Combination MIL-STD-1553 and ARINC 429 Instruments for Instrumentation & Simulation, Embedded design, and Automated Test.

High Density

Whether you are developing rugged avionics for the harshest environments, designing advanced simulations requiring precise time synchronization, or integrating automated test systems with decades-long operational lifespans, higher density avionics interfaces are crucial for maximizing your design. AIT provides the highest density MIL-STD-1553 and ARINC 429 devices, including versatile combination devices that enable you to select the perfect channel density for your specific project needs.

READ MORE  ▸ ▾

AIT’s combination MIL-STD-1553 and ARINC 429 hardware platform is based on our FPGA implementation, with our unique transceiver circuits that allow for industry-leading features in compact packaging. The new UXI architecture provides unmatched portability, and allows for applications to control MIL-STD-1553 and ARINC 429 channels from USB or Ethernet connections.

Learn more about AIT’s UXI devices

Select from one (1) to four (4) dual redundant MIL-STD-1553 channels, and from four (4) to eight (8) ARINC 429 transmitters, and four (4) to eight (8) ARINC 429  receivers on a variety of form factors.

Highly Capable

AIT’s combination devices are based on the same FPGA implementation as AIT’s standalone MIL-STD-1553 and ARINC 429 products. Each channel provides unmatched capability, and are are capable of test and verification of bus protocols and bus electrical characteristics.

Download the Brochure

READ MORE  ▸ ▾



Features:

  • Up to 4 dual redundant channels of MIL-STD-1553
  • Up to 16 channels of ARINC 429 (8 Tx and 8 Rx)
  • PCIe, PXIe, XMC, USB and Ethernet form factors
  • Concurrent BC, 31 RTs and BM operations
  • Programmable channel output amplitude
  • Programmable ARINC 429 channel speed
  • Concurrent operation of all channels at high speed
  • Bus recording and replay operation
  • Full error injection/detection capabilities
  • Programmable trigger capture
  • Programmable bus coupling, including full bus network Simulation for point-to-point MIL-STD-1553 connections
  • Onboard IRIG-B time encoder/decoder for synchronization
  • IEEE1588 synchronization for UXI form factor
  • 10 Discrete I/O interfaces (5 inputs and 5 outputs) with up to 30V signaling/tolerance
  • All devices supported by AIT’s Flight Simulyzer Software
  • All devices supported by AIT’s MIl-STD-1553 and ARINC 429 software development kits (SDKs) for multiple OSs

Find AIT’s software development kits (SDK’s) with driver software for Windows, Linux, LabVIEW/LabVIEW-RT (other operating systems available upon request) in the support area.

Highly Flexible

AIT’s MIL-STD-1553 and ARINC 429 instruments are designed to support the most demanding applications. We provide rugged, reliable avionics bus solutions for a variety of flight test and avionics communications needs. With our expertise in avionics bus and network protocols, we specialize in building the most reliable and capable interfaces.

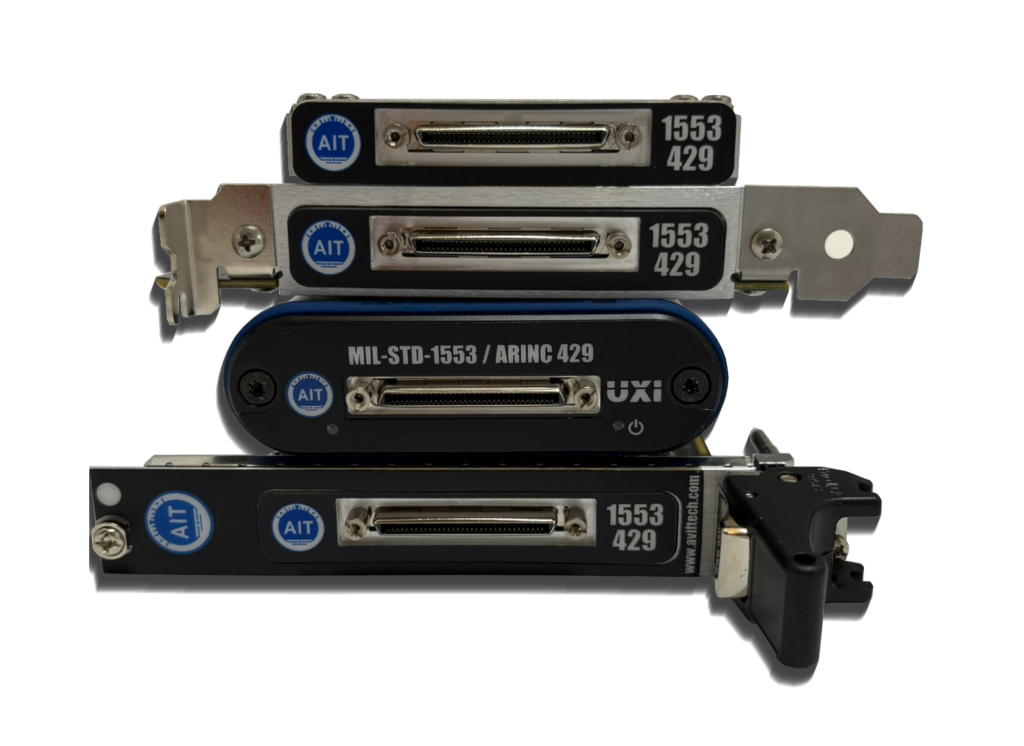

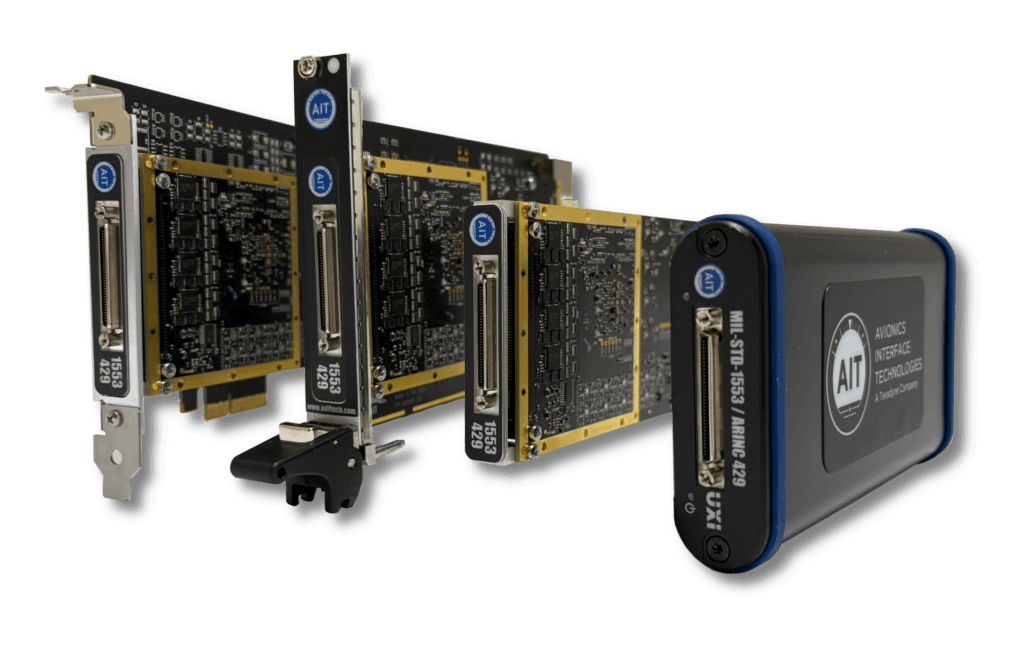

Combination MIL-STD-1553 and ARINC 429 devices are available in a variety of form factors:

  • PCIe
  • PXIe
  • USB
  • Ethernet
  • XMC

Modern avionics systems rely heavily on complex control systems that utilize real-time data buses such as MIL-STD-1553 and ARINC 429. As experts in avionics communications technologies, AIT offers a wide range of avionics bus and network interfaces, supporting software, and engineering expertise to ensure the success of any avionics system test program, including demanding Hardware-in-the-Loop (HIL) applications.

Depot and operational level testers must support a wide range of testing capabilities. To achieve this, it is essential that Automated Test Equipment (ATE) systems can handle MIL-STD-1553 and ARINC 429 interfaces, which remain relevant as aircraft system life cycles are extended. AIT’s FPGA designs are independent of third-party designs, ensuring long-term support for ATE systems.

PXI Express

PXIe-C1553XC-EF-A429

Combination MIL-STD-1553 & ARINC 429 PXI Express Test Instrument

PCI Express

PCIe-C1553XC-EF-A429

Combination MIL-STD-1553 & ARINC 429 PCIe Module

XMC

XMC-1553-429

Combination MIL-STD-1553 & ARINC 429 XMC Mezzanine Module

Ethernet

UXI-1553-429

Combination MIL-STD-1553 and ARINC 429 USB & LAN Test & Simulation Module
