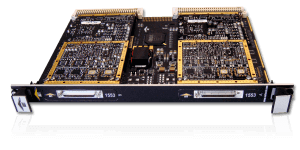

VME-1553

VME-1553

MIL-STD-1553 Test & Simulation Interface for VME


KEY FEATURES

  • Dual redundant, single, dual, or quad stream configurations
  • Transformer & Direct Bus Coupling
  • Concurrent Bus Controller, 31 Remote Terminals, & Bus Monitor operation
  • Full error injection and detection
  • Multi-level trigger for capture and filtering
  • IRIG-B time code encoder/decoder
  • Ten high voltage (up to 30V) programmable DIO lines
  • Real-Time recording and physical bus replay
  • ANSI Application interface supporting C, C++, C#, and .NET development
  • Device driver support: Windows, Linux, & VxWorks (others on request)
  • Designed for extended temperature operations
  • 64-bit VME Interface (VME master & slave capability)
  • Front Panel and Rear I/O (P2) Available
  • Long term supportability, design is NOT based on Tundra VME bridge
