uPDL-615

ARINC 615/615A USB Smart Cable PDL Solution

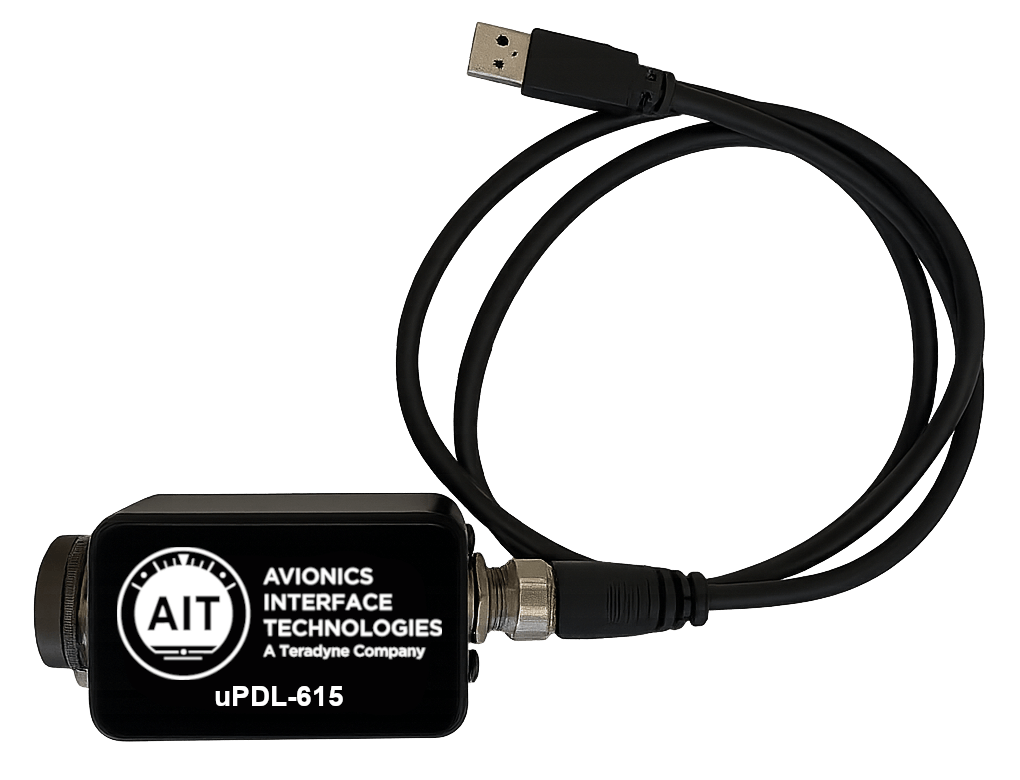

The AIT Micro Portable Data Loader (uPDL-615) is a ruggedized, portable “intelligent cable” solution that can be used in conjunction with a USB connection to any Windows PC, Laptop, or Tablet to support ARINC 615, ARINC 615A, and ARINC 844 software data load applications.

Key Features:

• Supports 615‐3/4 Data Loader operations using ARINC 429
• Supports 615A (‐1, ‐2, ‐3, & -4) Data Load operations over Ethernet & ARINC 664 networks
• Standard ARINC 615 53‐pin connector for direct connection to aircraft and compatibility with ARINC 615 to 603 adapter cables
• Optional Network Loadable Software Distribution applications available (but NOT required!)
• 32 GB (or optional 64 GB upgrade) built‐in mass storage dedicated to loadable software parts
• Verifies and Validates software parts prior to load operations
• Powered via USB connection (no aircraft or external power required)
• Includes Intuitive & easy to use graphical user interface (web browser based)
• Simple single button load operations with concise status indication
