PDL-615-XT

PDL-615-XT

ARINC 615/615A Integrated Secure PDL & Transport Solution

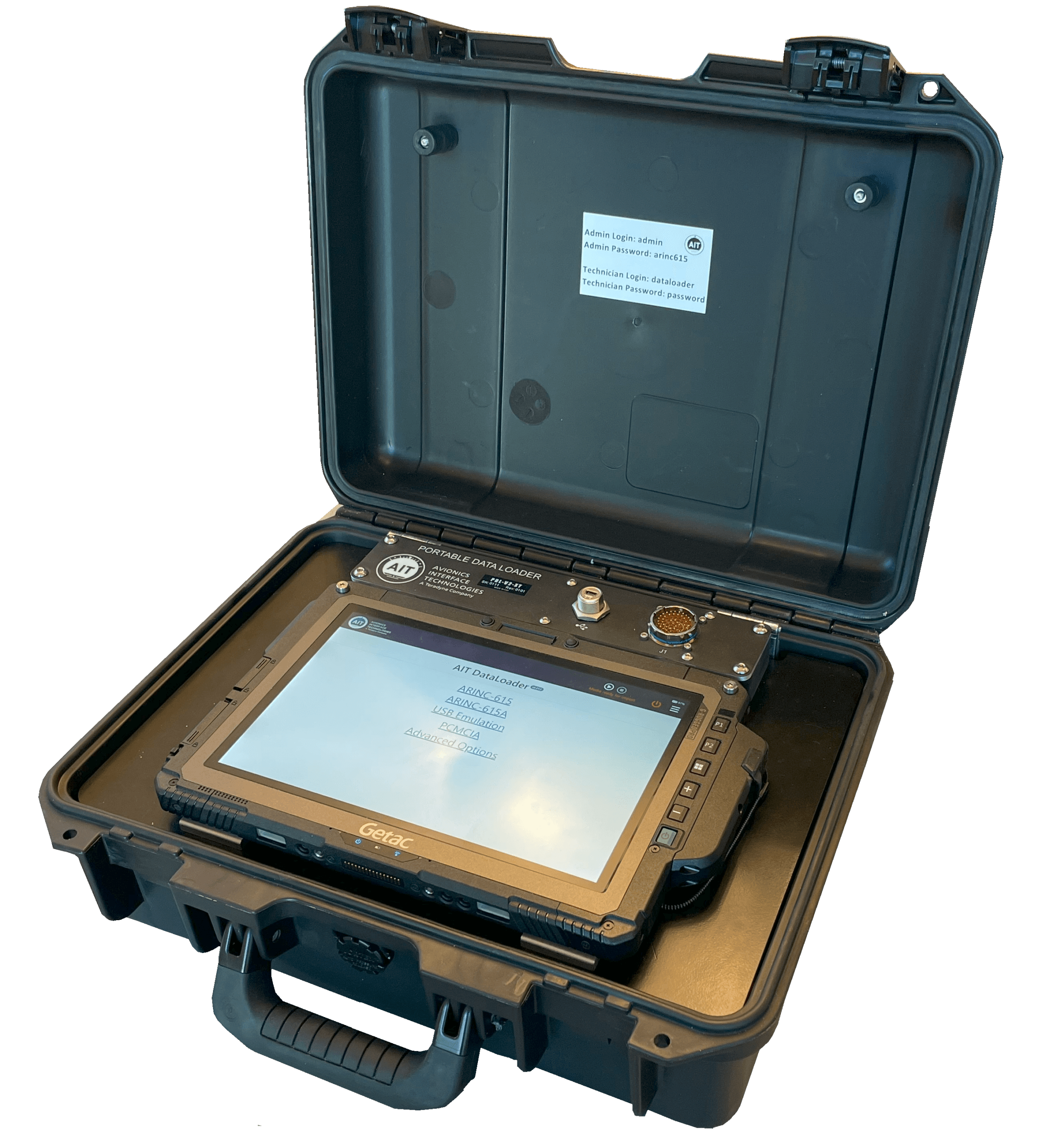

The PDL-615-XT is a rugged ARINC 615 & ARINC 615A Secure PDL solution integrated with a rugged, portable, storage and transport case.

Key Features:

  • Supports 615-3/4 Data Loader operations using ARINC 429
  • Supports 615A (-1, -2, -3, & -4) Data Load operations over Ethernet & ARINC 664 networks
  • Secure Operations (ARINC 835 & 645 Compliant)
  • Accepts loadable software parts from any attached USB device (USB Flash Drive, CD-ROM/DVD)
  • Supports Emulated USB Mass Storage Device Loads
  • Optional Loadable Software Distribution Applications available (but NOT required!)
  • 32 GB (or optional 64 GB upgrade) built-in mass storage dedicated to loadable software parts
  • Verifies and Validates software parts prior to load operations
  • Optional Network Interface Connectivity:
    •    10/100/1000 base-T Ethernet LAN
    •     4G LTE broadband
    •     Wireless 802.11ac

Note: Our flexible connectivity options allow you to populate the integrated MSD with or without a direct connection to your network

  • Battery powered operation (no aircraft power required)
  • MIL-STD-810G and IP65 certified for shock and vibration
  • Intuitive & easy to use graphical user interface (web browser based)
  • Simple single button load operations with concise status indication
  • Audio and Visual indication of successful/unsuccessful load operations
